FT232R USB to RS232 Serial Communication Cable
Assembly

This custom FT232R USB to RS232 Serial Communication Cable Assembly is designed
for reliable serial communication between computers and embedded electronic devices.
Integrating the FTDI FT232R USB-UART chipset and SP213 level conversion circuit, the
cable enables seamless USB-to-RS232 protocol conversion for industrial automation,
instrumentation, embedded development, communication equipment, and maintenance
applications.

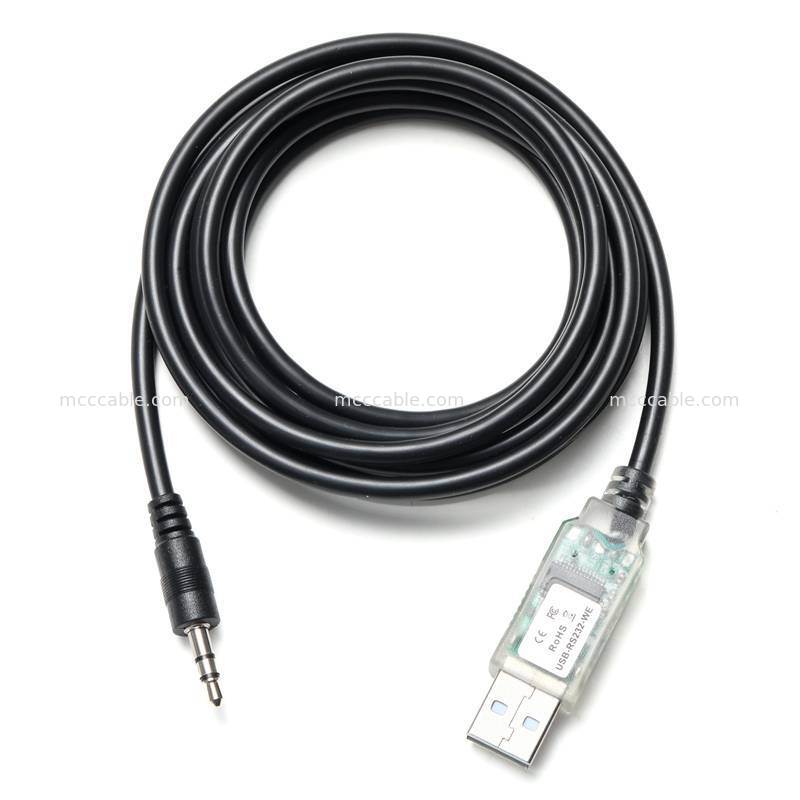

The assembly features a USB Type-A male connector and a 3.5mm stereo male connector
connected through a shielded UL2464 cable structure. With molded strain relief construction,
transparent converter housing, and 100% electrical testing, this cable delivers stable
communication performance, excellent EMI resistance, and long-term reliability in professional
environments. The cable length is 1800±30mm and utilizes shielded 28AWG conductors for
dependable signal integrity.

FT232R USB to RS232 Serial Communication Cable
Key Features

Original FTDI FT232R Chipset

Uses the industry-proven FT232R USB-to-UART controller for stable communication and
wide operating system compatibility.

Integrated RS232 Level Conversion

Built-in SP213 interface circuit provides reliable RS232 voltage level translation for industrial
equipment communication.

Shielded Communication Structure

Aluminum foil shielding effectively reduces EMI and improves transmission reliability in
electrically noisy environments.

Transparent USB Converter Housing

Clear molded housing allows visual inspection of internal PCB circuitry and electronic
components.

Industrial Grade Construction

Molded strain relief design protects cable termination points and improves flex durability.

Plug-and-Play Operation

No external power supply required. Direct USB connection enables quick deployment and
configuration.

RoHS Compliant Design

Manufactured using environmentally compliant materials suitable for global industrial markets.

100% Functional Testing

Every cable undergoes open, short, and miswire testing before shipment.

FT232R USB to RS232 Serial Communication Cable
Specifications

FT232R USB to RS232 Serial Communication Cable
Applications

Industrial Automation Systems

Used for PLC programming, machine controller communication, industrial HMI integration,
and equipment diagnostics.

Embedded Development Platforms

Ideal for firmware downloading, UART debugging, microcontroller communication, and system
validation.

Communication Equipment

Supports configuration, maintenance, and diagnostics of networking and telecommunications
devices.

Test and Measurement Instruments

Used in calibration equipment, laboratory instruments, and industrial data acquisition systems.

Security and Access Control Devices

Provides reliable communication interfaces for security controllers and access management
systems.

Medical Electronics Maintenance

Supports service ports and engineering communication interfaces for diagnostic equipment.

Smart Energy Systems

Suitable for power monitoring devices, industrial energy controllers, and smart metering
equipment.

FT232R USB to RS232 Serial Communication Cable
Custom Manufacturing Capabilities

As a professional custom cable assembly manufacturer, Sino-conn provides comprehensive
customization services for USB serial communication solutions.

Chipset Options

• FT232R
• FT231X
• FT2232
• FT4232
• CP2102
• CH340
• PL2303

Protocol Options

• RS232
• RS422
• RS485
• TTL UART

Connector Options

• USB Type-A
• USB Type-C
• Micro USB
• Mini USB
• DB9
• RJ45
• 3.5mm Stereo
• Custom Connectors

Cable Customization

• Custom Length
• Custom Wire Gauge
• Custom Shielding
• Custom Jacket Material
• Custom Color
• Custom Overmolding

Industrial Enhancements

• Double Shielding
• High Flex Construction
• Oil Resistant Cable
• UV Resistant Jacket
• Low Temperature Cable
• High Temperature Cable

Manufacturing Services

• Prototype Support
• Small Batch Production
• Mass Production
• OEM Branding
• Private Label Packaging

Sino-Media is a specialized cable assembly manufacturer. We utilize cutting-edge
automation equipment, premium raw materials, a robust quality assurance system,
and a skilled technical team to deliver high-quality, custom cable and harness
components in small quantities. Our engineering, production, and quality control
teams ensure the excellence of these unique components. Our mission is to enhance
product quality continuously, meet customer needs, and maintain expertise in the
materials we use and recommend. Our dedication to customer satisfaction drives
the company’s ongoing growth.

Q1. Is it a factory?
A:Yes,we have more than 16 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq

1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive

ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro

cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a

nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a

nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%

to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100

3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and

offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.

How to contact us?
send your inquiry details in the below, click "send" now! free sample and best price are waiting for

you, if you can't find the product in our web, you can also send an inquiry to us, even if we don't make

it, we will find the same product with good quantity and good price.
